8128H
Operating Weight
52,100 kg
Rated Load Capacity
12,000 kg
Rated Power
418 kW
- Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.
- Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
- ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions. 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.
Similar products

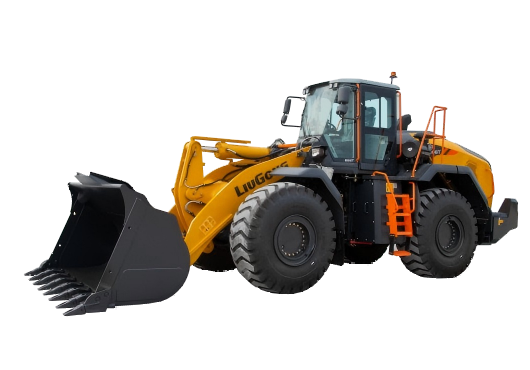

886T HST
Operating Weight:26,800 kg
Rated Load Capacity:8,800 kg
Rated Power:240 kW
890T
Operating Weights:31,560-31,750 kg
Rated Load Capacity:9,500 kg
Rated Power:261/262 kW
886T
Operating Weight:30,360 kg
Rated Load Capacity:8,900 kg
Rated Power:240 kW
8128H (Tier 3 / Stage III)
| Operating Weight | 52,100 kg |
| Rated Power | 418 kW (561 hp / 568 ps) @ 2,000 rpm |
| Raise | 8.5 s |
| Tipping Load-Full Turn | 31,200 kg |
| Dump Clearance, Full Height Discharge | 4,094 mm |
| Model | Cummins QSK19 |
| Aspiration | Turbocharged & Air-to-air intercooled |
| Width over Tires | 3,590 mm |
| Turning Radius, Outside of Tire | 7,620 mm |
| Light Material Bucket | 11 m³ |
| Standard Bucket Capacity | 7.0 m³ |
| Total Hydraulic Cycle Time | 14.58 s |
| Maximum Travel Speed, fwd | 36 km/h |
| Bucket Breakout Force | 432 kN |
| Dump Reach at Full Height Discharge | 1,861 mm |
| Emission Rating | Tier 3 / Stage III |
| Length with Bucket Down | 11,847 mm |
| Cab Height | 4,195 mm |
| Bucket Capacities | 6.0-12 m³ |
| Rock Bucket | 6.0 m³ , 7.0 m³ |
※For reference only.
